XF86Config Demystified

Contents

• Introduction
• Anatomy of the xf86config file
• Interaction between sections
• How to select ...
• How to select the X-server
  • Red Hat
  • Debian
• How to select 8, 16, 24, 32 bpp (display depth)
  • Setting the display depth using -bpp
    • Setting -bpp using startx
    • Setting -bpp using xdm
  • Setting the display depth using DefaultColorDepth
• How to select the Resolution
  • Setting the default mode
  • Setting the Monitor hsync and vsync range
  • Tweaking the Modeline entries
    • Using X -probeonly
    • Using xvidtune
    • More about Modelines
• Debugging Exotic Hardware
• How to use two pointing devices (mice)

Introduction

Often, the most difficult part of installing Linux (the first time) is getting X11 working. Programs like Xconfigurator (from Red Hat) and XF86Setup (from XFree86) go a long way to simplifying the process, but when things go wrong, the simplest solution is to edit the XF86Config file manually.

The XF86Config file, is divided into sections, each section controlling a specific aspect of the X11 "server". The sections are not all independant, and understanding how they interact is an essential step towards successfully configuring XFree86.

In general, it is the sections highlighted in black/yellow which give the most trouble.

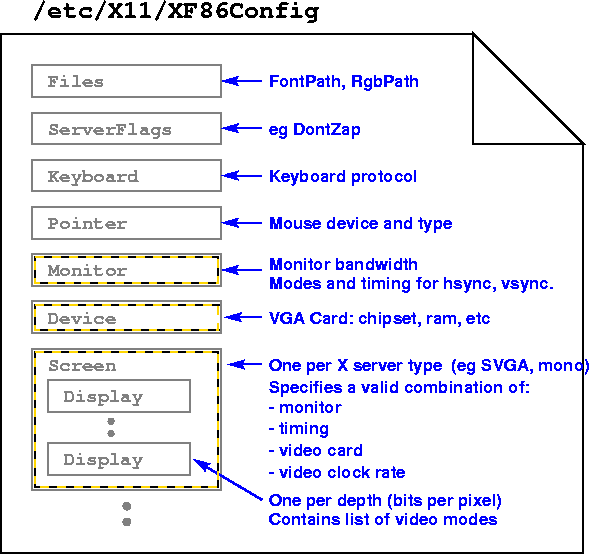

Anatomy of the xf86config file

Interaction between sections

Although the different sections may appear "independant", they are not. It is important to understand exactly how the sections are related.

The sections Monitor, Device, Screen and Display all play a role in the selection of a video-mode. This is what happens when the X-server is started:

1. The appropriate Screen section is chosen.

   The appropriate Screen section is the one with the right Driver entry for the X-server program being run.

   The right Driver entry the different X-programs is as follows:

   XF86_S3 XF86_S3V XF86_W32 XF86_Mach*   etc	Driver "accel"
   XF86_SVGA	Driver "svga"
   XF86_VGA16	Driver "vga16"
   XF86_MONO	Driver "mono"
   XF86_FBdev	Driver "fbdev"

2. The Monitor and Device entries are used to select the corresponding Monitor and Device (video card) sections, based on the Identifier entry in those sections.

   The Identifier is completely arbitrary. It is simply used as a pointer to the right section.

3. The Display subsection is chosen based on the depth (bits per pixel)

   The depth is determined by the entry DefaultColorDepth, or by the command-line argument -bpp

This is where things get tricky....

4. The Modes entry defines a list of modenames.

   There must be one or more Modeline entries corresponding to each modename. The Modeline entries appear in the Monitor section.

   The first modename in the list is the one which will be used when the X-server starts. The other modes can be accessed using the 3-key combinations:

   <Ctrl> <Alt> <Keypad_Plus>

   and

   <Ctrl> <Alt> <Keypad_Minus>

5. Where there is more than one Modeline entry with the same name, the following criteria is used to select the mode:
   1. The first numeric parameter of each Modeline is the video clock rate. If there is a Clocks entry in the Device section, then the choice of possible modes is restricted to those Modelines with a clock-rate equal to one of those listed in the Clocks entry.
   2. The mode found which has the highest clock rate, while still within the horizontal and vertical sync range of the monitor (as specified in the Monitor section), will be used.

   Most video cards these days do not need a Clocks entry. If omitted, any clock rate is considered acceptable, up to the maximum clock rate the chipset supports.

   Note that the modes are referenced by name
   eg. "1024x768" is a simple label. It is the timing-values which determine the actual video mode, regardless of the label.

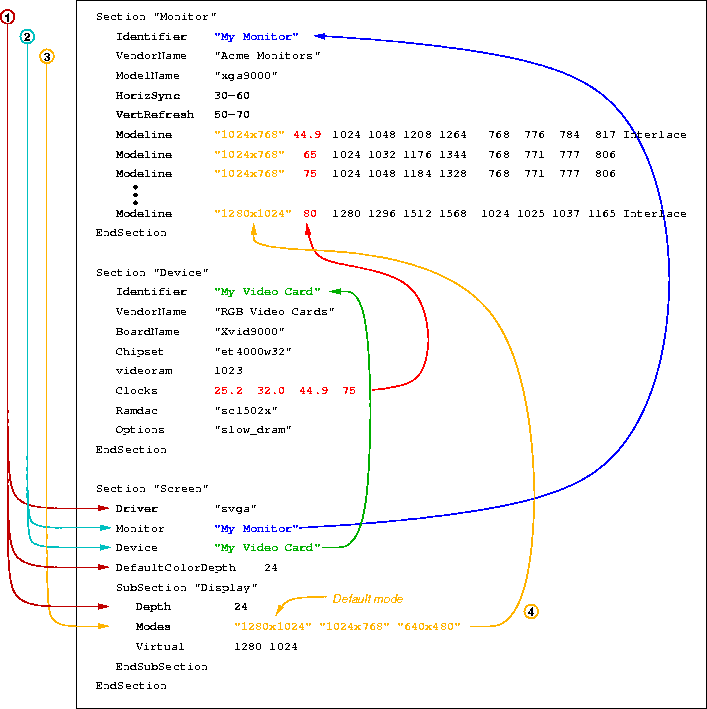

The following diagram illustrates this.

It is generally not necessary to specify the videoram or ramdac. These parameters can be probed-for.

ISA video cards require the chipset entry to be present and correct. PCI video cards generally do not require the chipset entry (the chipset can be probed by the X-server)

How to select ...

How to select the X-server

As mentioned above, the choice of X-server determines the "driver". (Mono, vga16, svga, etc). This means executing the right binary for the X-server. (XF86_SVGA, XF86_VGA16)

Red Hat

This is set using the symbolic link

/etc/X11/X

which should link to the corrrect X-server, eg:

/etc/X11/X -> ../../usr/X11R6/bin/XF86_SVGA

Debian

This is normally set within the configuration file:

/etc/X11/Xserver

which looks like this:

/usr/bin/X11/XF86_SVGA
Console

The first line in this file is the full pathname of the default X server.
The second line shows who is allowed to run the X server:
RootOnly
Console      (anyone whose controlling tty is on the console)
Anybody

Only the first two lines are significant.

How to select 8, 16, 24, 32 bpp (display depth)

Having more bits-per-pixel gives you more realistic colors. This can be important for any sort of image processing, or simply to get rid of the side-effects of pseudo-color, such as "layering" and poor color matching. However, the improved color rendering of more bits-per-pixel comes at the expense of:

• interactive performance
  ...which can deteriorate significantly
• maximum dot-clock rate
  ...ie refresh rate of the screen in Hz
• maximum resolution
  ...which is limited by the amount of video RAM
  1M byte = 1152x900 @ 8 bpp

There are two ways to set the number of bits-per-pixel:

- from the command-line, using -bpp or

- from the XF86Config file, using DefaultColorDepth.

Setting the display depth using -bpp

The X-server program (eg XF86_SVGA) accpets a command-line option:

-bpp depth

However, the server is usually started indirectly, either from the script startx or by xdm (or gdm or kdm)

Setting -bpp using startx

If you are using startx, you can:

• specify -bpp interactively, eg

  startx -- -bpp 24

• Create/modify one of the following files:

  /etc/X11/xinit/xserverrc (Red Hat)

  /usr/X11R6/lib/X11/xinit/xserverrc (Debian)

  ~/.xserverrc

  Include the line:

  X -bpp 24 $@

Setting -bpp using xdm

If you are using xdm, modify the file:

/etc/X11/xdm/Xservers

To look like this:

:0 local /usr/X11R6/bin/X -bpp 24

Setting the display depth using DefaultColorDepth

The other way to set the display depth is to modify the file:

/etc/X11/XF86Config

In the appropriate Screen section, add a DefaultColorDepth entry of the form.

DefaultColorDepth  depth

For example:

DefaultColorDepth  24

This applies to both xdm and startx. The command-line parameter -bpp will override the DefaultColorDepth entry, so you can still experiment with different depths using startx, as shown above.

How to select the Resolution

The horizontal and vertical resolution is determined by the Modes line in the applicable Display section.

Each mode listed on the Modes line is a pointer to a corresponding Modeline entry in the applicable Monitor section. Like the Monitor and Device names, the mode names are arbitrary eg. the mode name "640x480" could be renamed to "lowres", provided both the Modeline entry and the Modes line are changed.

For a given list of modes, note that:

1. The first mode in the Modes line is the mode which is used when the X-server first starts.
2. the highest resolution becomes the virtual resolution if there is no Virtual entry in the Display section.
3. Any modes which exceed the HorizSync or VertRefresh values in the Monitor section are deleted.

You can define any number of different modes. The different modes can be reached using the <Ctrl> <Alt> <Keypad_Plus> and <Ctrl> <Alt> <Keypad_Minus> mechanism.

Setting the default mode

By default, XF86Setup generates a Modes line like this:

    Modes     "640x480" "800x600" "1024x768" "1280x1024"

Since "640x480" is the first mode in the list, the X-server will always start in that mode. You will need to cycle to the mode you want using <Ctrl><Alt><Keypad_Plus> and <Ctrl><Alt><Keypad_Minus>

Starting up in "640x480" is quite deliberate, since "640x480" is the most likely to work. This saves you the distress of wondering "whats gone wrong", which would happen if you had started in a higher-resolution mode, and your monitor couldn't handle it.

However, once you're confident all of the listed modes work, you can edit this line, and put your preferred mode first. eg

    Modes     "1280x1024" "1024x768" "800x600" "640x480"

Setting the Monitor hsync and vsync range

The last point (c) is very important, because it is the one which is easiest to get wrong, and easiest to fix. For example, the following values will probably not work, or at best, allow only 1 resolution.

Section "Monitor"
    ...
    HorizSync 31.5
    VertRefresh 60
    ...
EndSection

The reason is in the mathematics:

• A HorizSync of 31.5 kHz allows 31.7 microseconds per horizontal scan line
• A VertRefresh of 60 Hz allows 16667 microseconds per vertical frame
• This requires exactly 525 lines per frame

In short, by defining very rigid timing values for our monitor, we have limited our possibilities to a very specific mode. The above values would cause most video modes to be deleted, because they are "beyond the capabilities of the monitor" (as specified). If we're lucky, we might get a 640x480 mode which matches these values.

What we should have specified is something like this:

Section "Monitor"
    ...
    HorizSync 30-55
    VertRefresh 50-75
    ...
EndSection

These values, taken at opposite extremes allow anything from 400 to 1100 scan lines. The best way to set these values is to open the manual for your monitor, and look up the specifications. These will give you the right values to put in here.

Don't go wild and enter really extreme values, because you'll end up with video modes that don't work. Or (rumor has it) you may damage the monitor. If you're working without a manual, start with some conservative values, and expand them gradually. The values shown above are fairly conservative for today's monitors.

The symptoms of exceeding the hsync and vsync range of your monitor are typically:

• a blank screen (most common)
• loss of horizontal sync (diagonal lines)
• loss of vertical sync (rolling display)

In the majority of cases, there are enough Modeline entries added by default that setting the correct HorizSync and VertRefresh range is all that is required to get very good results.

Tweaking the Modeline entries

Modeline entries define three things, from the users perspective:

• horizontal and vertical resolution
• refresh rate
• location of the image on the screen (height/width/position)

These aspects are limited by:

• amount of video RAM

  1 M allows up to 1152x900 @ 8 bpp
  4 M allows up to 1280x1024 @ 24 bpp

• Monitor hsync and vsync range

  In general, higher resolutions require higher frequencies, especially for the HorizSync range.

• Maximum "dot-clock" of the video card

  ie. the maximum rate at which the video card can send pixels to the monitor

• RAMDAC Bandwidth

  Each video card has a device known as a RAMDAC - a very fast digital to analogue converter, which converts the binary video data into three analogue video signals (red green and blue).

• Monitor Bandwidth

  ie. the maximum rate at which the monitor can receive pixels from the video card.
  Higher resolutions require higher monitor bandwidth (no exceptions :-)
  The first symptom of exceeding the monitor bandwidth is dull colors, and a color balance which changes with the colors on the screen.

XFree86 is designed to choose video modes which meet all of the above constraints.

Using X -probeonly

If you're not getting the modes you want, or think you should, the first thing you should do is run:

X -probeonly >& /tmp/X.log

Let's examine the output in detail, using my S3 Virge PCI card as an example.

Each line is prefixed with either (**) or (--)

(**)

means that this information was obtained from the XF86Config file

(--)

means that this information was probed for or calculated by the X-server

Note what the following lines are telling me about my configuration:

(--) SVGA: Mode "1024x768" needs vert refresh rate of 86.96 Hz. Deleted.

(--) SVGA: Mode "1152x864" needs hsync freq of 70.88 kHz. Deleted.

This is telling me that these modes are beyond the capabilities of my monitor. In this case, there are other modes with lower frequencies which give me the same resolutions, so we won't worry about them.

If a particular mode is only slightly outside our range I could either:

• Adjust the range for HorizSync or VertRefresh
• Adjust the dot-clock value (usually this means decreasing it)

(--) SVGA: Ramdac speed: 135 MHz

This sets the practical limit of my clock rate

(--) SVGA: Maximum allowed dot-clock: 135.000 MHz

This is the limit of my clock rate, as determined by the chipset and RAMDAC speed.

This means that any Modeline with a clock of >135 will be ignored.

(**) SVGA: Mode "640x480": mode clock = 31.500

(**) SVGA: Mode "800x600": mode clock = 40.000

(**) SVGA: Mode "1024x768": mode clock = 75.000

(**) SVGA: Mode "1280x1024": mode clock = 110.000

These are the modes which the X-server has selected from all those modes with the same name.

(**) SVGA: Using 8 bpp, Depth 8, Color weight: 666

My X-server has defaulted to using 8 bpp.

Let's see what I get with 24 bpp.

X -probeonly -bpp 24 >& /tmp/X.log

(--) SVGA: Ramdac speed: 135 MHz (57 MHz for 24 bpp)

(--) SVGA: Maximum allowed dot-clock: 57.000 MHz

Going to 24 bpp has slashed my maximum dot-clock from 135 MHz to 57 MHz. This will affect the two high-resolution modes, "1024x768" and "1280x1024"

(**) SVGA: Using 24 bpp, Depth 24, Color weight: 888

Just checking :-)

(--) SVGA: Clock for mode "1280x1024" is too high for the configured hardware.

        Limit is 57.000 MHz

(--) SVGA: Removing mode "1280x1024" from list of valid modes.

Notice that "1280x1024" has been eliminated completely. This is because there was no Modeline entry named "1280x1024" with a clock of 57 MHz or less.

(**) SVGA: Mode "1024x768": mode clock = 57.000

"1024x768" has been down-graded from 75 Mhz to 57 MHz, which reduces my refresh-rate.

(--) SVGA: Virtual resolution set to 1024x768

Since I have not specifed a virtual resolution in the Display section, the highest resolution is used. In this case, it is 1024x768 because 1280x1024 was deleted.

Remember that some modes are bound to be beyond the capabilities of the hardware, as was 1280x1024 @ 24bpp in this instance

Using xvidtune

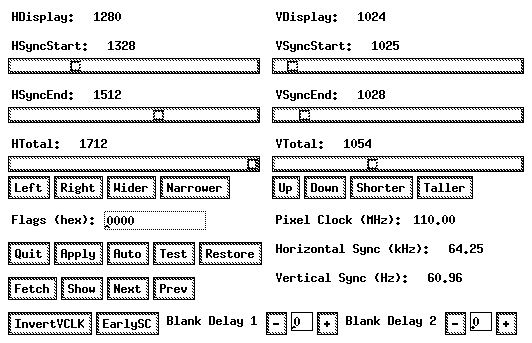

xvidtune allows you to center the image on the screen by adjusting with Modeline values. This avoids the situation where you have to adjust the monitor settings every time you change modes.

The changes are not visible until you click [Auto] or [Test] or [Apply].

Once you have a setting you like, click on [Show] . The Modeline values are written to the terminal, like this:

"1280x1024"   110.00   1280 1404 1588 1764   1024 1025 1028 1050

These can then be copied and pasted into the XF86Config file.

More about Modelines

If you want more infomation about modelines, and what the numbers actually mean, see the document "XFree86-Video-Timings-HOWTO" (.gz)

Red Hat:

/usr/doc/HOWTO/other-formats/html/XFree86-Video-Timings-HOWTO.html

Debian:

/usr/doc/HOWTO/html/XFree86-Video-Timings-HOWTO.html

Debugging Exotic Hardware

If you have a very new or unusual video card, or are experiencing problems, the first port of call should be the XFree86 documentation. This is available at:

http://www.xfree86.org/3.3.3.1/index.html
http://xfree86.mirror.aarnet.edu.au/3.3.3.1/index.html

The documentation contains a wealth of useful information for specific video hardware, including additional keywords which can be added to the Device section.

In a pinch, adding the following Option lines to the Device section can often get you a working system:

Section "Device"
    ...
    Option "no_accel"
    Option "sw_cursor"
    ...
EndSection

However, they will severely degrade performance. The XFree86 documentation often provides alternatives which will sacrifice little or no performance.

How to use two pointing devices (mice)

XFree86 only allows one pointing device to be used at a time. This is inconvinient on many laptop computers, which usually have a built-in mouse-device, but may also have a conventional mouse attached to a serial port.

The solution is to use gpm. gpm is capable of taking input from two devices, and providing net result on a named-pipe output, /dev/gpmdata

Edit the file:

/etc/rc.d/init.d/gpm (Red Hat)

or

/etc/init.d/gpm (Debian)

Such that gpm is started with the -R option, and the -M option for the second mouse device, eg:

gpm -R -m /dev/psaux -t ps2 -M -m /dev/ttyS0 -t logi

You will also need to edit the XF86Config file. Sepcifically, the Pointer section:

Section "Pointer"
    Device   "/dev/gpmdata"
    Protocol "mousesystems"
    Emulate3Buttons	# if you need it
EndSection

Note that when sending data to /dev/gpmdata the mousesystems protocol is used by gpm, regardless of the original protcol used by the mouse device(s).
